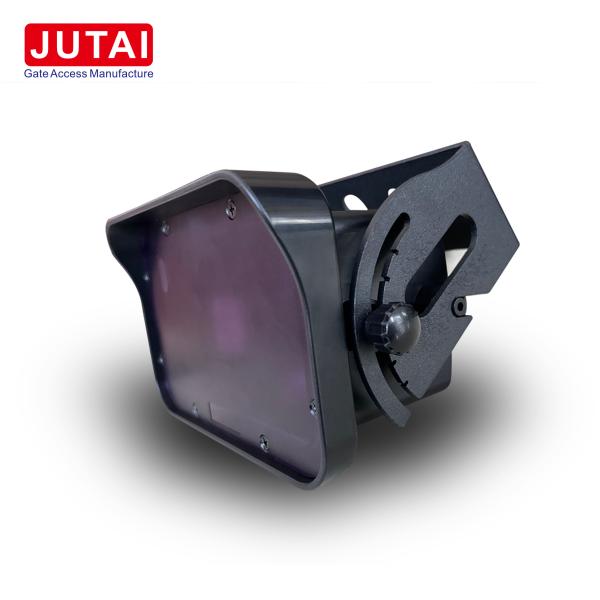

RP42-9ME / RVP42-9MG Doppler Radar Motion Sensor For Industrial Doors

Power Supply : 12-28VAC, 12-36VDC

Brand Name : JUTAI

Model Number : RVP42-9ME

Certification : FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay

Supply Ability : 1000 pieces per month

Delivery Time : 5-8 days

Packaging Details : Cartoon

Package Size : 28.00cm * 13.00cm * 10.00cm

Frequency : 24.125GHz

Output : 2 Relays Output. Max.48 VAC/DC. Max.Current 1A

HS Code : 9031809090

Detection Height : 2m to 9m

Contact Now

RP42-9ME / RVP42-9MG Doppler Radar Motion Sensor For Industrial Doors

Automatic Motion Radar Sensor for High-Speed Door Sliding Gate Industrial Door

Product Overview

The RP42-9ME/RVP42-9MG is a high-performance motion radar detector specifically developed for vehicle and human detection in industrial applications. Designed for industrial doors, garage doors, cold storage doors, and road gates, this sensor features dual relays for vehicle-detection and pedestrian-detection with customizable output configurations.

The sensor includes advanced recognition and filtering capabilities for horizontally moving vehicles or pedestrians, ensuring precise detection in various industrial environments.

Technical Specifications
Parameter Specification
Application Technology Doppler Radar
Transmission Frequency 24.125GHz
Transmission Power <20dBm
Detection Height 2.0m~9.0m
Angle Adjustment 0°-90° longitudinal
Detection Speed 5cm/s~25km/s
Detection Area (30° Angle) 3.0m*3.5m @ height:2m
6.5m*8.5m @ height:9m
Operation Current <100mA
Power Frequency 50Hz
Temperature Range -30°C ~ +60°C
Relative Humidity 0% to 95%, no condensation
Protection Grade IP65
Relay Output 24VDC@1A / 30VDC@1A
External Dimensions 164mm x 111mm x 94.5mm
Cable Length 7m
Sensor Weight 650g
Operation Voltage 12~36V ADC
Key Features
Detection Area Adjustment

Customizable detection zones with both narrow and wide area settings to meet diverse installation requirements.

  • Narrow Detection Setting: Attach narrow lens to radar module for focused detection
  • Wide Detection Setting: Default setting without narrow lens for broad coverage
  • Sensitivity Adjustment: Fine-tune detection area using sensitivity potentiometer

No additional setup devices required - quick and straightforward configuration for various applications.

RP42-9ME / RVP42-9MG Doppler Radar Motion Sensor For Industrial Doors
Dual Relay Configuration

Advanced radar motion sensor equipped with dual relay functionality for precise detection control.

Vehicle Detection Relay

Engages upon detecting vehicles

Person Detection Relay

Activates in response to human presence

Combined Mode

Simultaneously activates both detection relays

Direction Recognition

Advanced directional detection capabilities for precise traffic monitoring.

  • Forward Motion: Activates upon approaching the sensor
  • Reverse Motion: Triggers when moving away from the sensor
  • Bidirectional Sensing: Detects both forward and backward motion
Remote Control & Bluetooth Programming

Enables users to quickly and safely make changes from the ground with comprehensive programming features.

  • Mounting Height Setting
  • Relay Parameter Setting
  • Detection Area Setting
  • Relay Holding Time Setting
  • Direction Recognition Setting
  • Crossing Traffic Setting
  • Anti-Interference Function Setting
  • Manual Industrial Door Opening Setting
  • Exit Configuration Mode
  • Reset Function
Operational Benefits
Energy Efficiency

Optimized energy consumption by activating only when traffic is detected. Doors remain open only during use and automatically close when traffic departs, reducing energy costs and pest entry risks.

Workflow Optimization

Enables smooth door operation without manual intervention. Suitable for new installations and retrofitting, ideal for dock and pedestrian doors with automated functionality.

Customizable Detection

Tailored detection settings with filtering for pedestrian, forklift, and parallel traffic. Accurately distinguishes between approaching and departing vehicles.

Application Solutions

The JUTAI radar sensor is suitable for various industrial applications including:

  • Factory Entrances - Enhanced security and efficiency
  • Industrial Safety - Pedestrian and parallel traffic rejection
  • Parking Garage Management - Advanced detection technology
  • Access Control - Barrier arm activation
  • Industrial Fast Doors
  • Stacking Doors
  • Garage Doors
RP42-9ME / RVP42-9MG Doppler Radar Motion Sensor For Industrial Doors RP42-9ME / RVP42-9MG Doppler Radar Motion Sensor For Industrial Doors
