JUTAI Safety 1m 4 Infrared Light Beams Curtain Sensor For Industrial PVC Fast Door
Product Overview
Safety Anti Pinch Photocell with 1m 4 Infrared Light Beams for Industrial PVC Fast Door
Product Description
The JUTAI Safety Light Curtain Sensor is a state-of-the-art solution designed to ensure the safety and security of industrial doors, barrier gates, and residential areas. Standing at 1 meter tall and equipped with 4 infrared beams, this sensor offers unparalleled functionality and reliability. Engineered to endure harsh environments and intense light interference, it provides robust protection with an IP65 waterproof rating.
Working Principle
The operation of the JUTAI Safety Light Curtain Sensor revolves around the emission, propagation, interaction, reflection, and reception of infrared radiation:
- Infrared Emission: The sensor emits an infrared beam using a built-in infrared emitter
- Beam Propagation: This infrared beam travels along a predefined path, creating an invisible detection barrier
- Target Interaction: When an object intersects the beam, it interacts with the infrared light by reflecting, absorbing, or scattering it
- Reflection or Scattering: The sensor's infrared receiver captures the reflected or scattered infrared light from the object
- Signal Processing: The sensor processes the received signal to analyze attributes such as signal strength and frequency, determining crucial details about the object
- Output Results: The processed data is then converted into electrical or digital signals, which can trigger actions, alarms, or data logging
Key Features
- Exceptional Durability: Designed to resist severe light interference and tough outdoor conditions, the sensor features an IP65 waterproof rating, ensuring long-lasting durability
- Extended Detection Range: The sensor boasts a detection range exceeding 15 meters, providing broad and reliable coverage
Functionality
- Industrial Door Safety: Automatically reopens doors if an object is detected during closure, enhancing safety protocols
- Barrier Gate Protection: Perfect for barrier gates, the sensor immediately reopens gates upon detecting a person or vehicle during closure
- Enhanced Home Security: Increases home security by triggering a relay output when unauthorized entry is detected, effectively deterring potential intruders
Customization Options
The Safety Light Curtain Sensor can be customized in various lengths and beam configurations to meet specific requirements, ensuring optimal adaptability and performance.
Technical Specifications
| Model |
PB20-16L15 |
| Technology |
Infrared Optical Technique |
| Detection Mode |
Presence detect |
| Number of Beams |
4 (Can be customized) |
| Length |
1m (Can be customized) |
| Detection Distance |
15m |
| Operating voltage |
12-24V |
| Transmitter Operating Current |
<50mA |
| Receiver Operation Current |
<50mA |
| Response Time |
50/100/150/200ms adjustable |
| Trigger Time |
Block a beam of light, trigger in 2 seconds; block adjacent 2 beams or more, trigger immediately |
| Trigger Method |
Single beam trigger or Multi-beam trigger (can be selected) |
| Working Temperature |
20~60℃ |
| Relative Humidity |
90%RH Max (No condensation) |
| Alarm Output |
Wired Output, relay Output 30VDC@2A, 125VAC@1A |
| Output Way (Wired Model) |
Wired transmission (NO/NC) |
| Rotation Angle |
180 degrees Horizontal |
| IP level |
IP65 |
| Material |
Aluminum Alloy And PC Plastic |

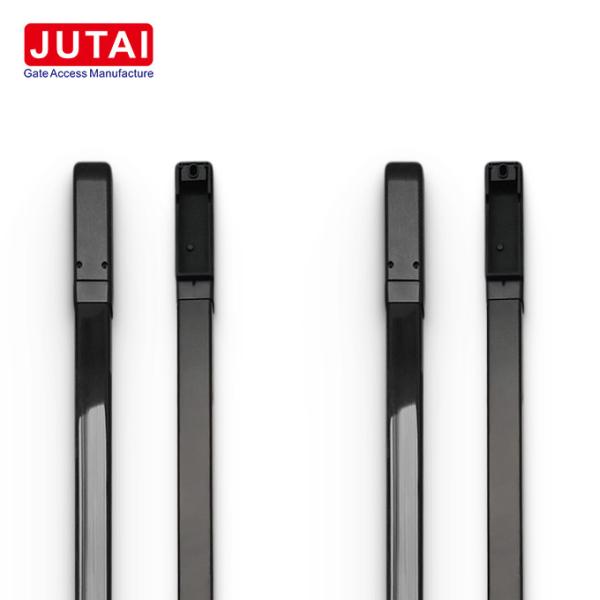

Product Images
Wiring Definition
Dimensions
Installation Guide
Operation Steps
- Remove Covers and Connect Wires: Take off the top and bottom covers of the sensor. Connect the wires and guide the thread end out through the threaded port.
- Position and Mark Holes: Confirm the installation position and align the transmitter and receiver in parallel. Mark the hole positions on the wall.
- Drill and Fix: Use a percussion drill to create holes at the marked locations on the wall. Insert wall plugs into the holes and secure them with screws.
- Mount Transmitter and Receiver: Utilize M3*25 screws to mount the transmitter and receiver on the wall. Connect the power supply and test the alignment of the sensor. Adjust the angle if necessary by rotating the aluminum tube. Lock the rotating screw securely once aligned.
- Replace Covers and Final Testing: Secure the top and bottom covers of the sensor using M2*8 screws. Perform a final test to ensure the sensor operates correctly.
Frequently Asked Questions
- What are some common installation issues? We address potential issues and provide solutions in our FAQ section to streamline the installation process.
- How can I troubleshoot if the sensor is not working correctly? Our FAQ includes troubleshooting tips to assist you in resolving any issues you may encounter during installation or operation.
Advanced Features
JUTAI Curtain Photocell Advanced Functions:
- Using unique infrared technology, it can be used under direct sunlight
- Stable detection distance of 20 meters
